The Project

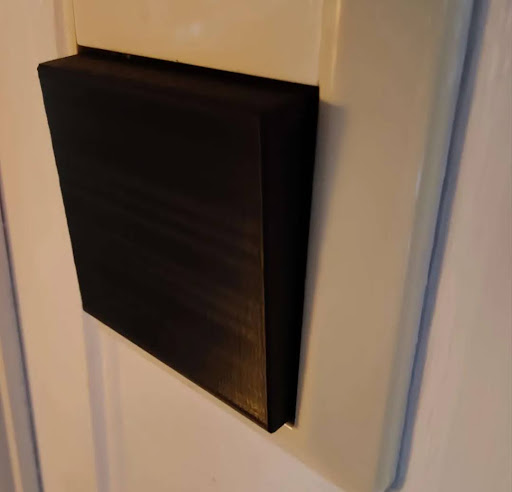

This Elko light switch replacement was a design I came up with in order to match the other dimmer above in this document.

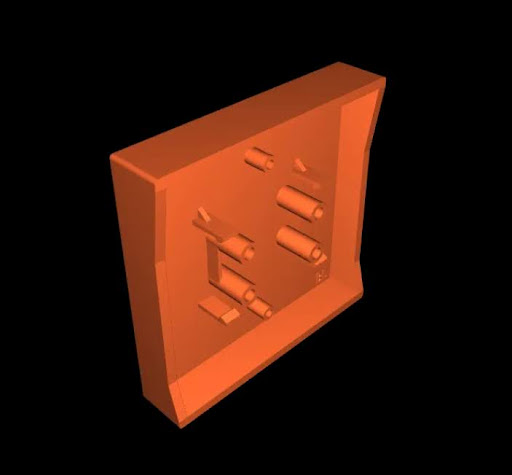

The design of this switch is more complicated than the previously described dimmer. Though in this case, I had the original product in usable condition, which let me do the measurements myself with little issue.
While breaking down the original, I identified numerous details that would be unnecessary in my design. In order to lessen the risk of the pieces breaking or other issues during printing, I decided to remove these, as they had little to no practical use.
One improvement that I would make, and aim to do, is to reduce the height of the surrounding frame, as it can be a little large.
Like most of my prints, the design was created in Maya, and sliced in Bambu Studio, and printed on a personal Bambu Labs P1P printer. It was later published on printables.com for public use.
The design of this switch is more complicated than the previously described dimmer. Though in this case, I had the original product in usable condition, which let me do the measurements myself with little issue.
While breaking down the original, I identified numerous details that would be unnecessary in my design. In order to lessen the risk of the pieces breaking or other issues during printing, I decided to remove these, as they had little to no practical use.
One improvement that I would make, and aim to do, is to reduce the height of the surrounding frame, as it can be a little large.
Like most of my prints, the design was created in Maya, and sliced in Bambu Studio, and printed on a personal Bambu Labs P1P printer. It was later published on printables.com for public use.
